How to move hazard plots generated in R-CRISIS to GIS application such as QGIS?
R-CRISIS results in GIS
- 3.5K Views
- Last Post 27 July 2020
- Topic Is Solved
Asked_at_class
posted this
23 March 2018
- Last edited 08 March 2022
Content_Manager
posted this
23 March 2018

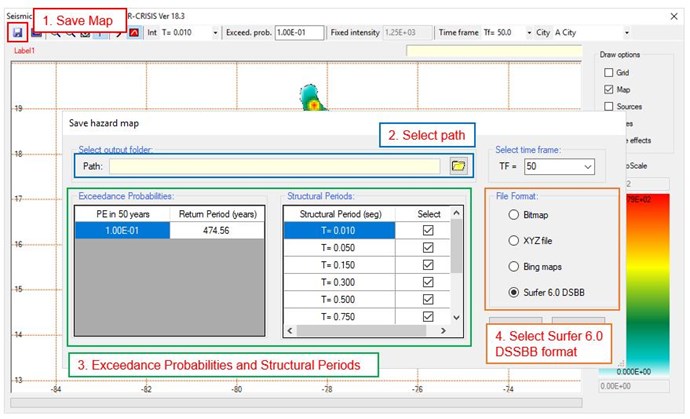

Seismic Hazard results are shown in Hazard -> See Hazard Maps menu. There, you can export such Hazard Maps in different formats: Bitmap, XYZ file, Bing Maps or Surfer 6.0 DSBB. To export a map to a GIS application format, you have to follow these instructions once you are inside Hazard -> See Hazard Maps menu:
1. Click on Save Map icon
2. Select path where you want to save yours maps
3. Select Exceedance Probabilities and Structural Periods which you want to export. You may add additional Return Periods by Right Click -> Insert Row while standing inside Exceedance Probabilities table zone
4. Select Surfer 6.0 DSBB Format
5. Click OK
Your maps will be saved within path you selected and will be able to be loaded in any GIS software, such QGIS.
Miguel Souffront
posted this
11 July 2020
Muy buenas tardes, podria algunos de ustedes decirme como construir un arbol logico?, o enviarme un archico *.LTC
Content_Manager
posted this
27 July 2020
Estimado Miguel,
En el siguiente link encontrarás una publicación acerca de la construcción de un árbol lógico:
En caso de que tengas dudas sobre este tema, no dudes en contactarnos.
Gracias por tu interés en R-CRISIS.
Saludos,
